Electrospinning Accessories – NANOFLUX

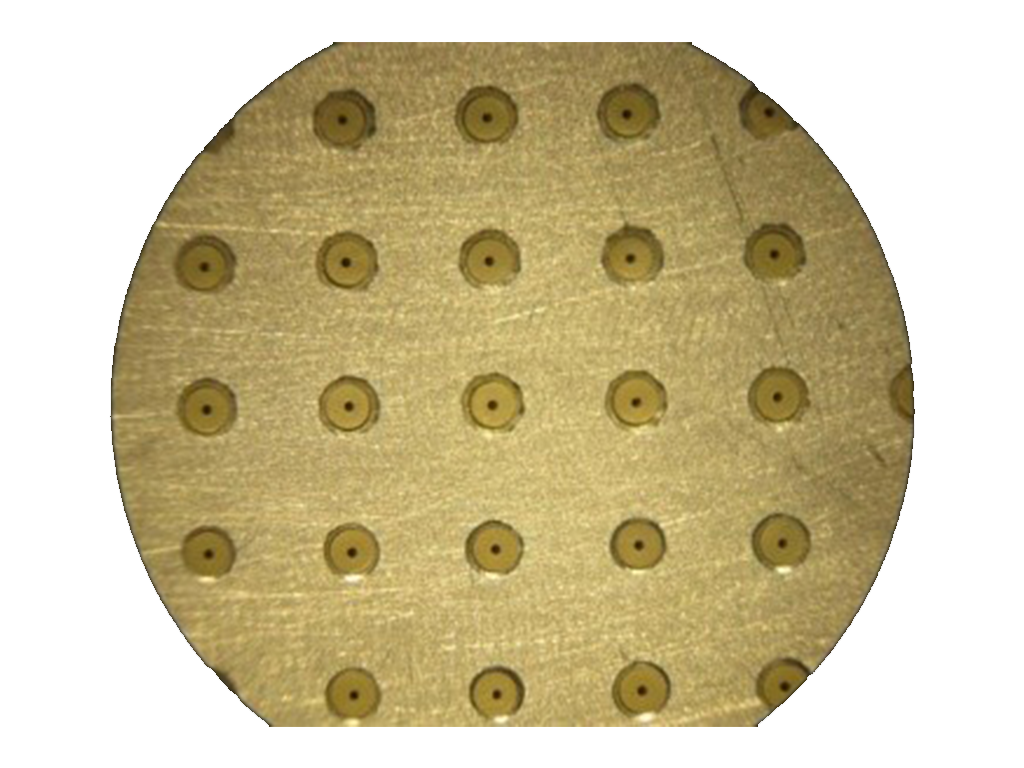

Spinneret

A spinneret is a device used to extrude a polymer solution or polymer melt to form fibers.

We provide customized design and manufacture of the spinneret base on customers specification.

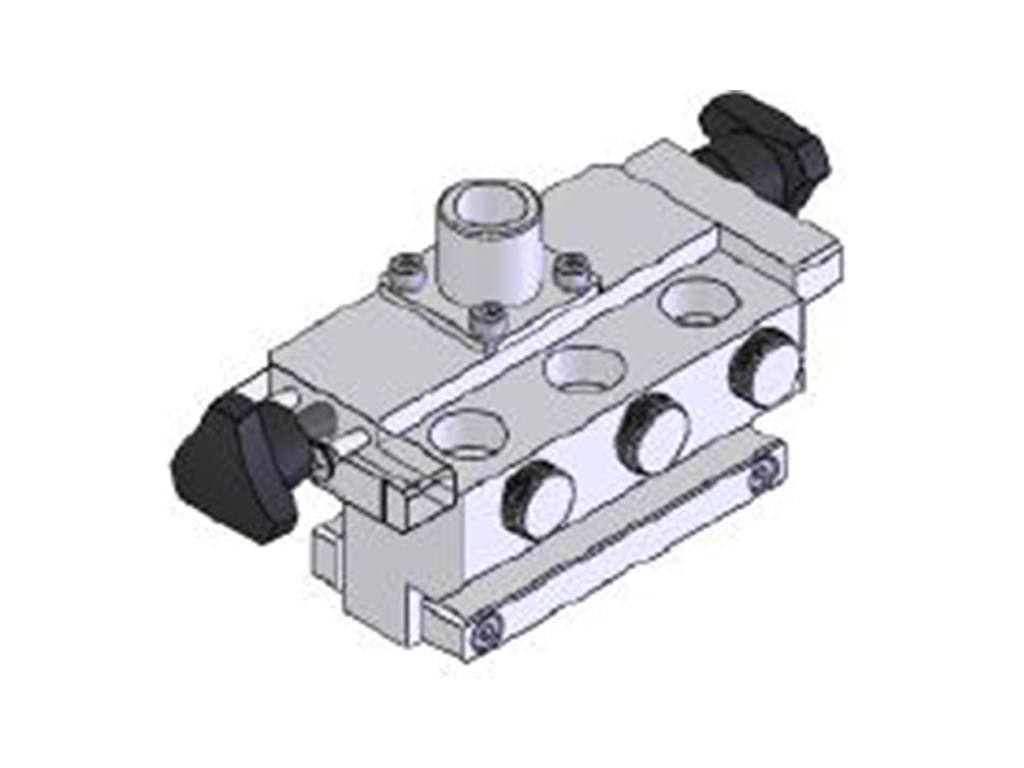

Nozzle

Nozzle is a device designed to control the direction or characteristics of a fluid flow.

We provide customized design and manufacture of the nozzle base on customers specification.

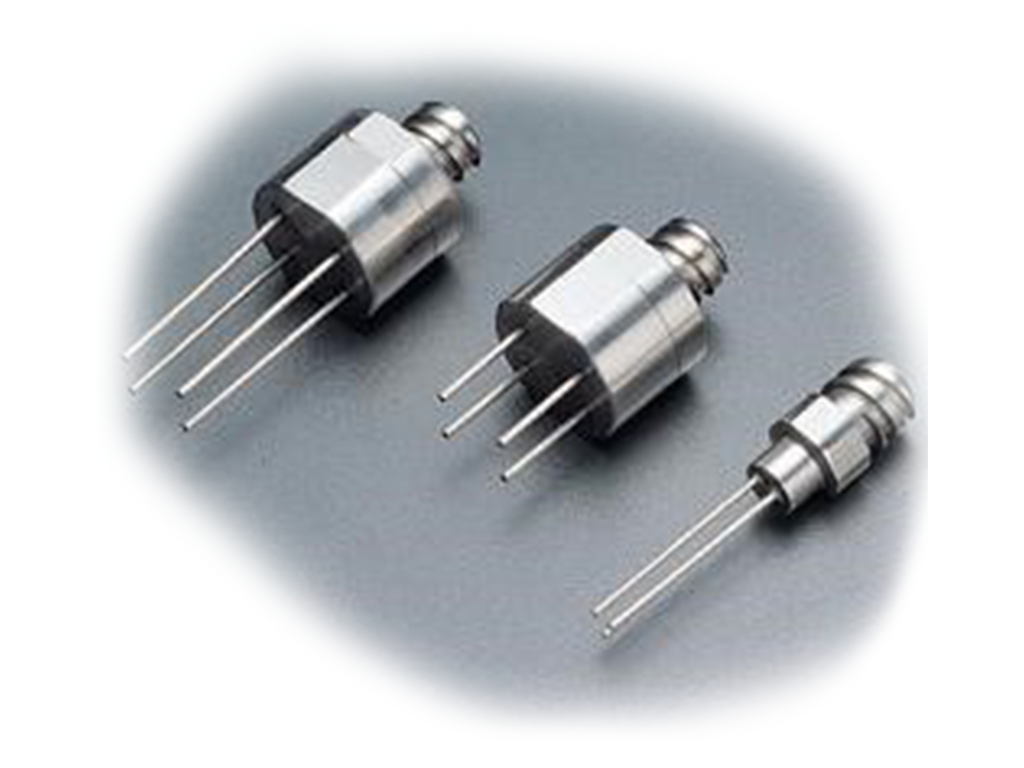

Stainless Steel Multi-Needle

Type	Material	ID(mm)	OD(mm)
16G	304 SUS	1.16	1.64
17G	304 SUS	1.01	1.49
18G	304 SUS	0.84	1.27
19G	304 SUS	0.7	1.08
20G	304 SUS	0.6	0.91
21G	304 SUS	0.51	0.82
22G	304 SUS	0.41	0.72
23G	304 SUS	0.34	0.64
24G	304 SUS	0.3	0.58
25G	304 SUS	0.26	0.51
26G	304 SUS	0.23	0.46
27G	304 SUS	0.21	0.41
30G	304 SUS	0.16	0.31

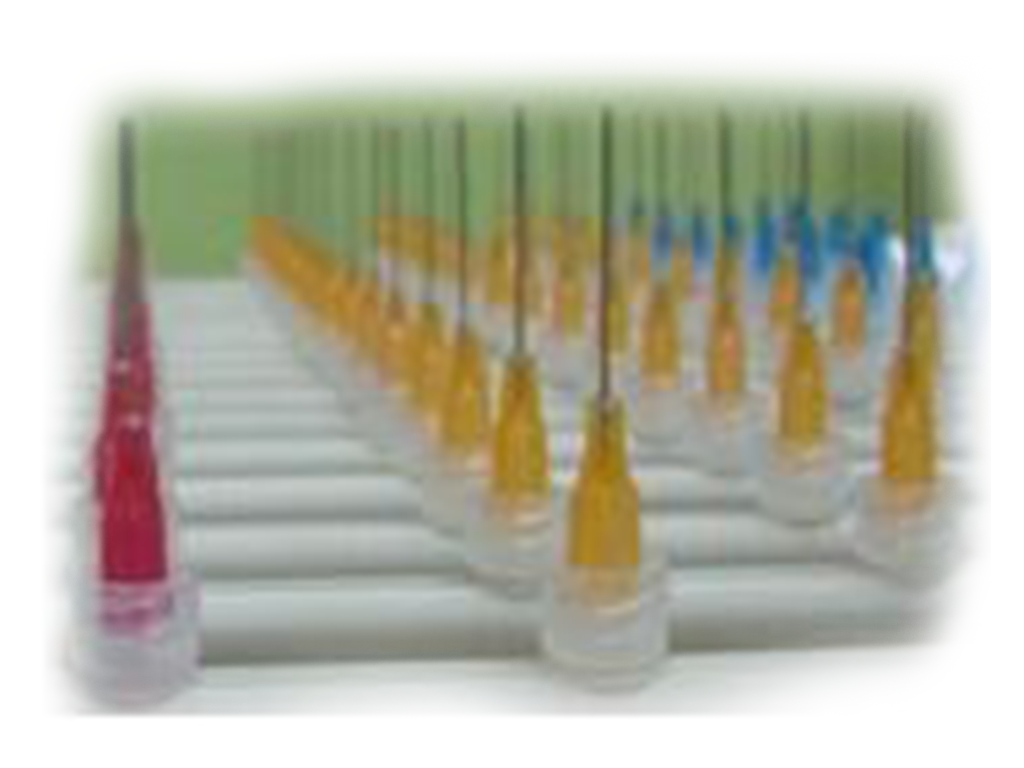

Commercial Standard Plastic Needle

Type	Material	ID(mm)	OD(mm)
14G	Plastic	1.55	2.1
15G	Plastic	1.37	1.8
18G	Plastic	0.84	1.27
20G	Plastic	0.6	0.91
21G	Plastic	0.51	0.82
22G	Plastic	0.41	0.72
23G	Plastic	0.36	0.64
25G	Plastic	0.26	0.51
27G	Plastic	0.21	0.41
30G	Plastic	0.16	0.31
32G	Plastic	0.11	0.23
34G	Plastic	0.06	0.19
